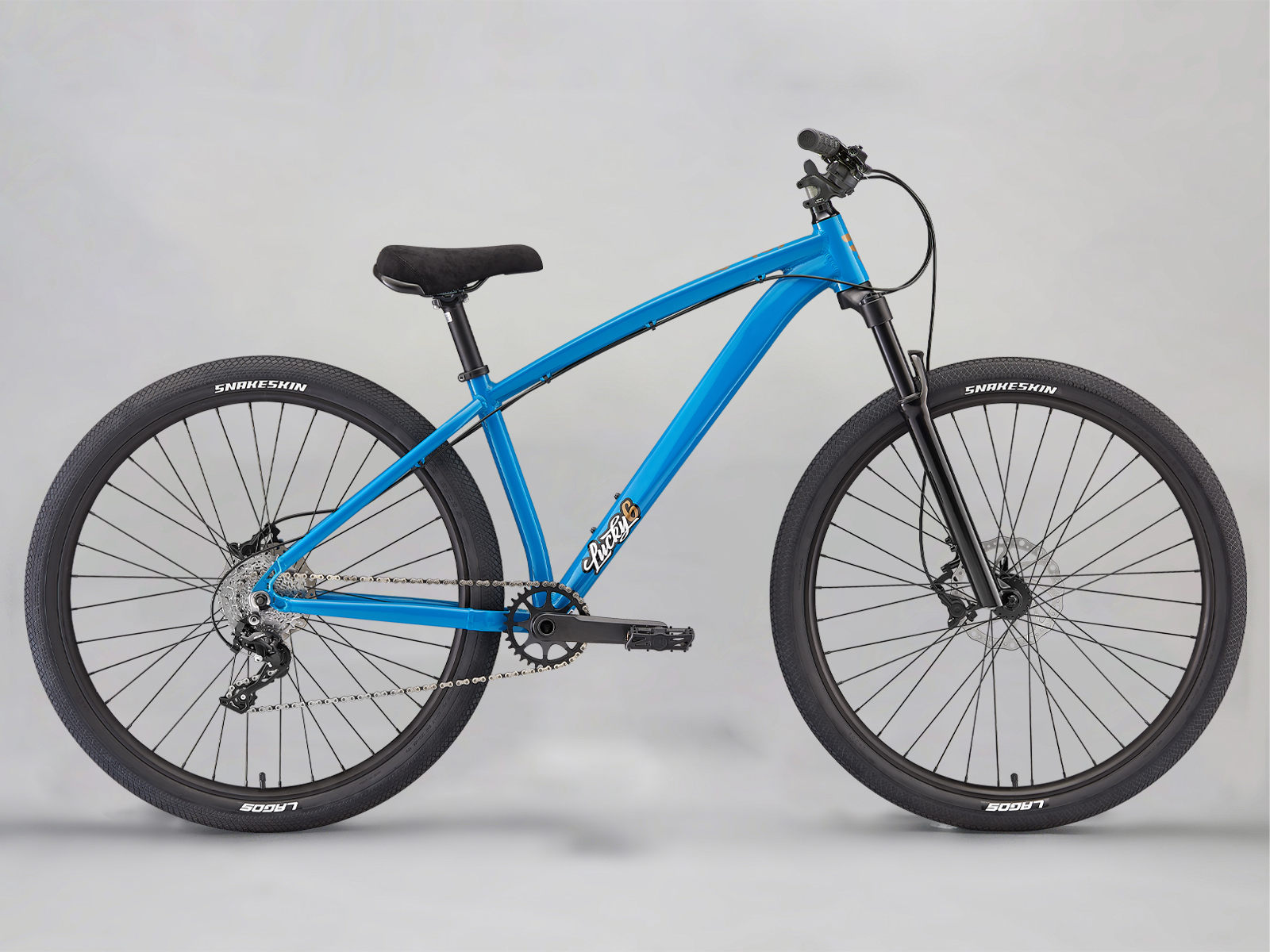

The long wait is over. The STB and STB-R are finally returning to our shores after the bicycle supply chain disruptions reeked havoc on the world. The ethos is the same, STB (Street Terrain Bike), designed for mashing the streets at effortless velocity, be that on one-wheel or two!
Geometry | |
---|---|
(A) Top tube length | 591mm |
(B) Chainstay length | 435mm |
(C) Head angle | 69° |
(E) Seat tube angle | 71° |
(F) Standover | 822mm |
(G) Reach | 426mm |
(H) Stack height | 625mm |
(J) Fork offset | 51mm |
Geometry diagram | Geometry |
Specs | |
Forks | Zoom 360 AMS 120mm |
Handlebars | Lucky 6 W790mm X 62mm |
Grips | Lucky 6 grips |
Headset | Tapered - Integrated - Sealed bearings |
Stem | Cast Front Load - Ø31.8 Reach 40mm |
Pedals | 9/16” Mafiabikes plastic |
Saddle | Mafiabikes Wheelie seat - Railed |
SEATPOST | Ø31.6mm micro adjust alloy |
Seat Clamp | Ø35mm External QR |
Cranks | Samox cranks 170mm 24mm Hollow Spindle |
Chainring/sprocket front | 32t Direct Mount Steel thick-thin |
Sprocket/cassette rear | 11-34t 10spd Cassette |
Tyre Front | Snakeskin 1 29"x2.5" |
Tyre Rear | Snakeskin 1 29"x2.5" |
Front hub | 10mm QR axle, sealed bearings |
Rear hub | 3/8" Axle, 10 Speed Freehub |
Rim front | 29" 35mm Wide low profile double wall alloy 36h |
Rim rear | 29" 35mm Wide low profile double wall alloy 36h |
Brake Front | Shimano - hydraulic disc brake 160mm rotor |
Brake Rear | Shimano - hydraulic disc brake 160mm rotor |
Tech | |
Weight (lbs) | 28.000000 |
BB type | 73mm ISO External (24mm) |
Headset type | 1 1/8” -1.5" tapered integrated |
Rear axle/hub spacing | 3/8" x 135mm axle |
Max tyre width rear | Forged Mafia designed yoke for big tyre clearance |
Frame construction and details | Hydroformed and heat treated 6061 alloy tubing |
Fork construction | Coil Fork with prelod adjuster |
Road kit | Included |
The ethos is the same, STB (Street Terrain Bike), designed for mashing the streets at effortless velocity, be that on one-wheel or two!
Designed from the ground up utilising the latest technology, proven geometry and our own hydro formed alloy tubing. Zero compromise, zero frills, zero bullshit. Designed for work.
We’re sorry it took so long, but sometimes the best things are worth waiting for..
Available in frame sizes medium and large
Key Riding features:
Designed by riders, for riders with proven geometry
Lightweight construction for ultimate control
Clean lines, savage colourways and carefully considered ease of customisation
10 speeds, carefully selected for all riding conditions
Adjustable forks to pinpoint and reflect your riding style
Ultra wide bullet proof double wall rims
Our legendary suede wheelie seat with quick release post
Solid rear axle for easy peg installation
Bullet proof drive-train for extended riding sessions (day after day)
Exaggerated outboard chainstays for frame work
Shimano Hydraulic Brakes 180mm front and 160mm rear for maximum control
Lagos snakeskin tyres to keep you glued to the roads
Peg-ready solid rear axle for combos
The STB/R Lucky6 was designed to make you FEEL GOOD
